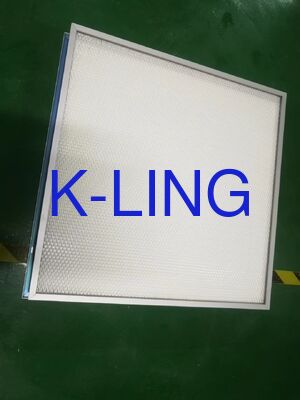

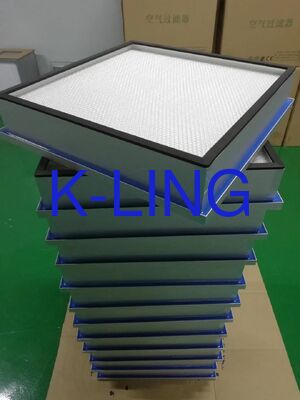

Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications

Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications
Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications
Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications

Großes Bild :  Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications

Produktdetails:
Markenname: KELING
Zertifizierung: CE
Model Number: KEL-HF
Zahlung und Versand AGB:
Minimum Order Quantity: 1
Preis: negotiable
Packaging Details: Plywood Packing
Delivery Time: 10 Working Day
Payment Terms: T/T
Supply Ability: 3000
Kontakt

Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications

Beschreibung
Anderer Name: Cleanoom Terminal-Filtrationseinheit Wirksam: H13-U15
Anwendung: AHU, HEPA-Filterkasten. Lüfterfiltereinheit, Cleanoom-Terminalfiltration Fiherpartikel: ≥ 0,3 um
Rahmen: Verzinkt/Aluminium Produktname: Mini-Plissee-HEPA-Filter
Dichtung: PU-/EVA-Material/Gel-Dichtungsmittel Filtermedien: Glasfasermedien
Hervorheben:

Initial Resistance Less Than 200 Pa HEPA Air Filter

,

1175x575x69mm Size Mini-Pleated HEPA Filter

,

Commercial Applications Cleanroom Terminal Filtration Unit

Aluminum Frame HEPA Filter Featuring EVA Material Gasket Efficiency Range H13 to U15
Product Overview

The Mini-Pleated HEPA Filter is a high-performance filtration solution designed for critical applications including Air Handling Units (AHU), HEPA Filter Boxes, Fan Filter Units, and Cleanroom Terminal Filtration. Its advanced design and superior filtration efficiency make it ideal for environments demanding stringent air quality control and contamination prevention.

Engineered to fit seamlessly into standard filtration systems, this Mini-Pleated HEPA Filter offers versatility and easy installation. Often referred to as a Cleanroom Terminal Filtration Unit, it serves as the final barrier in cleanroom air filtration systems, ensuring air meets the highest purity standards.

Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications 0
Key Features
  • Lightweight & Easy Installation: Aluminum alloy frames (anodized surface) and modular designs simplify handling and integration
  • Uniform Airflow Distribution: Integrated diffuser plates enable consistent face velocity (±20% variation at 0.45 m/s)
  • Chemical Inertness: Low outgassing materials (borosilicate glass fiber) minimize contamination in sensitive applications
  • Thickness options: 69mm, 78mm, 150mm, 220mm
  • Efficiency range: H13 to U15
  • Frame materials: Galvanized or Aluminum
  • Filter particles size: ≥ 0.3µm
  • Initial resistance: Less than 200 Pa
  • Mini-plated HEPA filter design for enhanced durability
Technical Specifications
Parameter Specification
Product Name Mini-Pleated HEPA Filter
Type H13 Air Filter
Faceguard Diamond Shaped Metal Protective Net
Frame Galvanized / Aluminum
Gasket PU / EVA Material / Gel Sealant
Partition Hot Melt Adhesive
Filtering Media Glassfibre Media
Filter Particles ≥ 0.3 µm
Initial Resistance Less Than 200 Pa
Size 1175 x 575 x 69 mm
Application AHU, HEPA Filter Box, Fan Filter Unit, Cleanroom Terminal Filtration
Mini-Pleated HEPA Filter with Initial Resistance Less Than 200 Pa and 1175x575x69mm Size for Commercial Applications 1
Applications
Biopharmaceutical Production (GMP A/B)

Ensures sterility in aseptic filling lines and bioreactor suites. H13/H14 filters (≥99.97-99.995% @ 0.3µm) with hydrophobic media prevent microbial ingress and biofilm growth. Validated via DOP/PAO testing per regulatory mandates.

Hospital Operating Rooms & Isolation Rooms

Protects patients from airborne pathogens (e.g., MRDA, TB). HEPA filtration (H13) is integrated into HVAC or laminar flow systems, often requiring fire-retardant materials and seamless gasket sealing (ISO Class 5-7).

Microelectronics & Display Panel Fabrication

Shields LCD/OLED production from dust-induced defects. Combines low resistance (<200 Pa) for energy efficiency with ULPA efficiency to maintain ISO Class 4-5 environments in clean zones.

Vaccine & Cell Therapy Labs (BSL-3/4)

Contains biohazards in containment facilities. Filters feature bag-in/bag-out designs and undergo rigorous integrity testing. Chemical inertness prevents reaction with disinfectants.

Customization Options

Our KELING HEPA Air Filter (Model Number: KEL-HF) offers customizable solutions tailored to specific needs. Manufactured in China and CE certified, this mini-plated HEPA filter ensures high efficiency with ratings from H13 to U15.

The HEPA filter with clapboard features a durable galvanized or aluminum frame and hot melt adhesive partition, providing excellent structural integrity. Measuring 1175x575x69mm, it fits various systems seamlessly.

With an initial resistance of less than 200 Pa, this filter maintains optimal airflow while effectively capturing airborne particles. We offer plywood packing for secure delivery, with a supply ability of 3000 units and minimum order quantity of 1 piece.

Pricing is negotiable with delivery within 10 working days and flexible payment terms via T/T.
